Model No.︰CENTER 110
Brand Name︰CENTER
Country of Origin︰Taiwan, China
Unit Price︰-
Minimum Order︰-

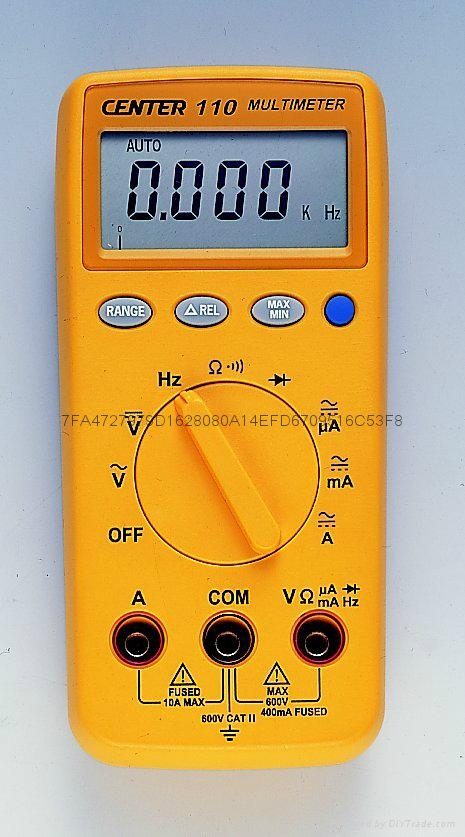

CENTER 110 is an autoragne DMM, with its small size, it can easily fit in most tool box, and the safety design is reinforced to meet the various everyday applications.
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
400mV~600V |
0.1mV~1V |
±0.5% rdg + 2dgts |
|
AC Voltage |
400mV~600V |
0.1mV~1V |
±1% rdg + 4dgts |
|
DC Current |
400uA~10A |
0.1uA~0.01A |
±1% rdg + 2dgts |
|
AC Current |
400uA~10A |
0.1uA~0.01A |
±1.3% rdg + 5dgts |
|
Resistance |
400Ω ~40MΩ |
0.1Ω~10KΩ |
±0.8% rdg + 2dgts |
|
Frequency |
4KHz~40MHz |
1Hz~10KHz |
±0.1% rdg + 1dgts |
|
Continuity |
1mA |
|
Payment Terms︰ T/T in advance
Lead Time︰ 30~45 days after received your confirmed order
specifications︰
Battery: 1.5V AAA x 2
Dimensions: 150 x 72 x 35mm
Weight: 220g
Advantages︰
1. Autoranging
2. High speed bargraph
3. Max/Min function
4. REL function
5. AC/DC 10A test
Trade Terms︰ F.O.B. Taiwan
Standard Met︰ CE
