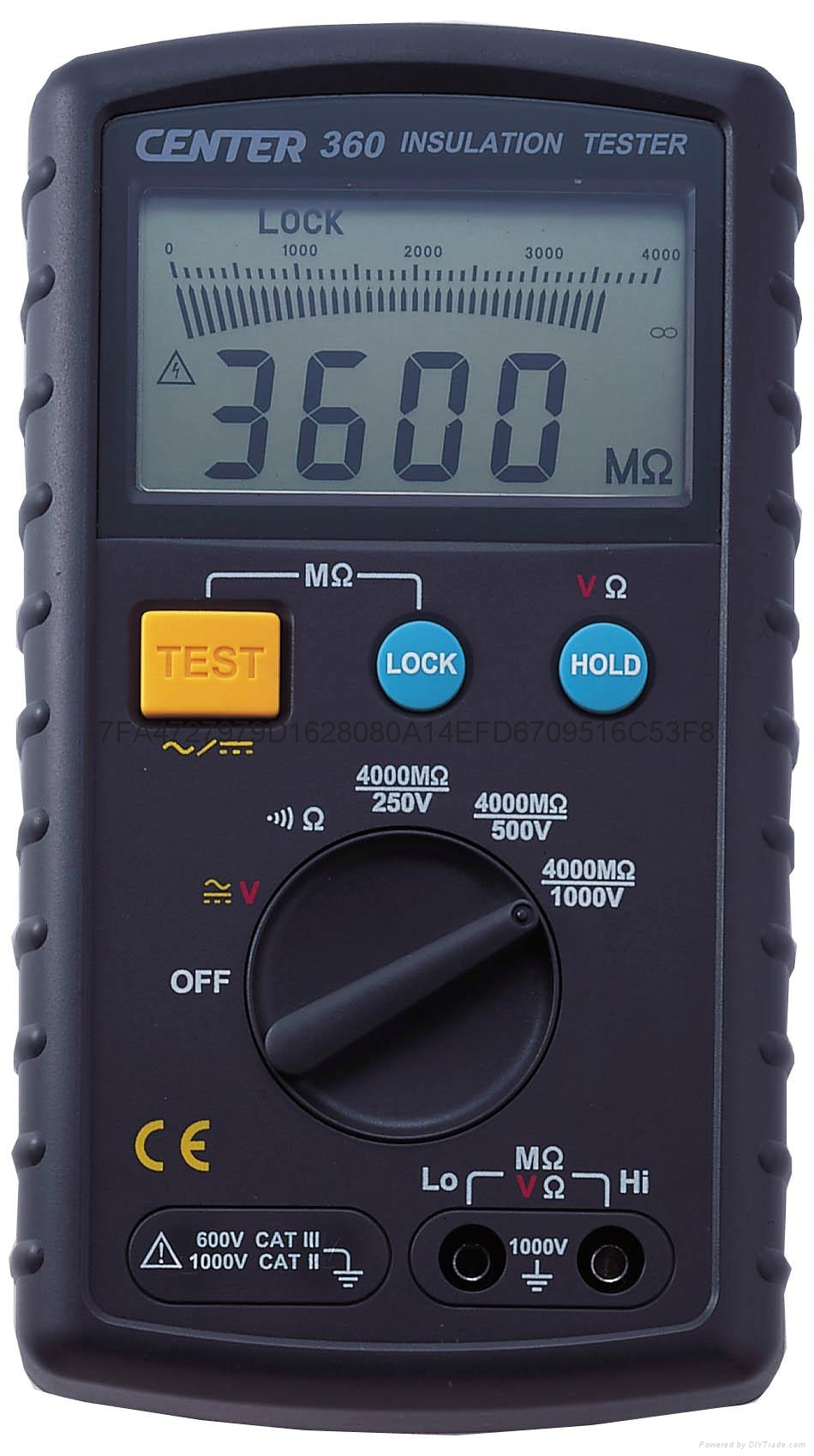

Model No.︰CENTER 360
Brand Name︰CENTER
Country of Origin︰Taiwan, China
Unit Price︰-
Minimum Order︰-
When doing power installation, CENTER 360 can provide same special helps. When doing insulation test, it can provide 250V, 500V and 1000V source for the test and under each range it can supply more 1mA current to feed the capacitance load. With the autorange function, it can measure up to 4000 MegaOhm with the resolution of 1K Ohm.
When doing the continuity test, the tester can source 200mA to distinguish the bad connections. By its built-in autorange function, on the same function range it can measure up to 4K Ohm with resolution of 0.1 Ohm.
These characteristics are also specified in the safety regulations in CE document.
|
Function |
Range |
Resolution |
Accuracy |
|
AC Voltage |
600V |
0.1V |
±1% rdg + 3dgts |
|
DC Voltage |
600V |
0.1V |
±1.5% rdg + 3dgts |
|
Resistance |
400Ω~4000Ω |
0.1Ω~1Ω |
±1% rdg + 5dgts |
|
Insulation |
4Ω~4000MΩ |
1KΩ~1MΩ |
±3% rdg + 5dgts |
Payment Terms︰ TT in advance
Lead Time︰ 30~45 days after received your confirmed order
specifications︰
Battery: 1.5V AA x 8
Dimensions: 196 x 112 x 64mm
Weight: 700g
Advantages︰
1. 4 digits LCD display.
2. Auto range for MΩ & Ω
3. 40 segments analog display.
4. Test hold function for easy operation.
5. Automatic zero to null lead resistance
6. Discharge Indication beeper for MΩ range
7. >1mA test current for MΩ range at rated voltage
8. >200mA short current for continuity range
Trade Terms︰ F.O.B. Taiwan
Standard Met︰ CE
